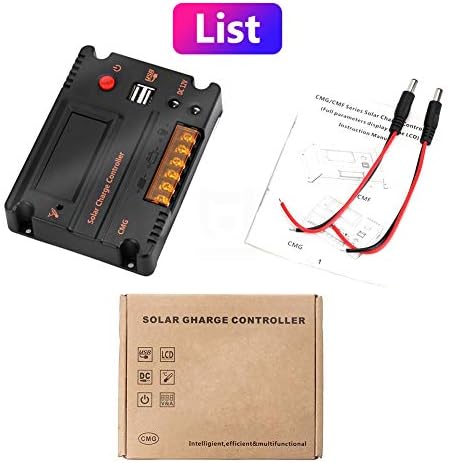

20A 12V 24V Solar Charge Controller Car Switch LCD Intelligent Panel Battery Regulator Charge Controller Overload Protection Temperature Compensation

Price: €39.00
(as of Mar 11,2023 03:03:53 UTC – Details)

The product can automatically manage the working of solar panel and battery in solar system. It is easy to set up and operate.
Specifications:
Overload/Short Circuit Protection: 1.5 Times by Rated Current
DC output voltage: 12 V.
Total DC output current: 2A.
Short circuit recovery time: 10s.
Open circuit voltage of solar panel: 40 V.
No load loss: 0.05 W.
Over voltage protection: 15 V; x2/24 V.
Float charge voltage: 14V; x2/24V.
Discharge recovery voltage: 12V; x2/24V.
Over discharge voltage: 10.5 V; x2/24 V.
Working temperature: -35 ~ 55 °C.
Safety Instructions:
1.Make sure your battery has enough voltage for the controllers to recognize the battery type (12V/24V) before installation.
2. The regulator is only suitable for lead acid batteries: OPEN, AGM, GEL. (NOT suitable for lithium batteries, Ni-MH battery).
3.Only suitable for working with photovoltaic solar panels. (NOT for other DC or AC power source)
Easy to operate
1. Connect the battery to the charge regulator – plus and minus.
2. Connect the solar panel to the regulator – plus and minus.
3. Connect the load to the charge regulator – plus and minus.
NOTE: The reverse order applies when uninstalling! An improper sequence order can damage the controller!
Fully automatic. This solar panel controller with output switch, intelligent control, easy to use to connect the controller and battery to the correct polarity by cable. The battery indicator on the controller lights up when successfully connected, otherwise it must be checked and reconnected.
Power efficiency: Microcontroller digital accuracy, when it is charged, the arrow between the panel symbol and the battery symbol will flash quickly when the battery is fully charged, it will flash slowly and stop charging, the function of the controller is to protect the overswing and discharge of the voltage. Available for charging DC lamps and phones. A key to open and close the load.
Rated discharge current >> Solar charge controller 12V 20A; USB output voltage: 5V; total USB output current: 3A; DC output voltage: 12V. Connect your load and cables to the correct polarity and then connect to the load output of the controller. Pay special attention to + – Polarity to avoid reverse connection, otherwise your charge may be damaged.
Protection functions: overload and short circuit protection, lightning protection, undervoltage protection, overcharge protection, reverse polarity charge controller for solar panels. Use PWM and WPC mode, improve system efficiency and extend battery life.
