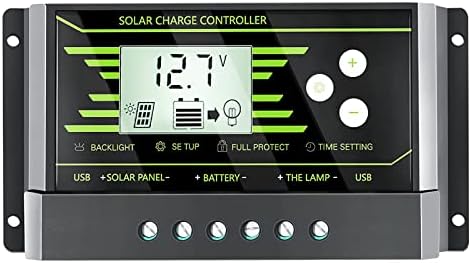

DIFCUL Solar Charge Controller, Charge Controller Solar Charge Controller 12 V, 10 A PWM Solar Panel Battery Outdoor Use with USB Connection LCD Backlight for Solar PV System

13.99

Added to wishlistRemoved from wishlist 0
Add to compare


Price: €13.99
(as of Jan 30,2023 01:32:56 UTC – Details)


Safety instructions:
– The battery cable should be as short as possible to minimise losses.
– Make sure your battery has enough voltage before first installation.
so that the controller can detect the battery type.
– The controller is only suitable for lead-acid batteries: open, agm, gel. It is not suitable
For nickel-metal hydride, lithium-ion or other batteries.
– The charge controller is only suitable for controlling solar panels. Never connect another charging source to the charge controller.
– The controller heats during operation. Please make sure the controller is on a
Smooth, well-ventilated surface.

Product features:
– Built-in industrial microcontroller.
– Full 3-stage PWM charging management
– The battery cable should be as short as possible to minimise losses.
– Dual USB output, the maximum current of 2.5A, supports charging
Mobile Phones
– Backlit screen (Note: backlight,
Backlight in no operation after 5S or so automatically shutdown).
– Built-in short circuit protection, idle protection, reverse polarity protection, overload protection.
– Reverse current protection, low heat generation.

Product specifications:
Max charging and discharging current: 10 A.
Max input power and voltage: 120 W (12 V).
Dual USB Output: 5V/2.5A (MAX)
Equalization: 14.4 V.
Trickle charging: 13.7V (standard, adjustable) / discharge stop: 10.7V (standard, adjustable) / discharge
Reconnect: 12.6V (default, adjustable)
Reconnection charging: 13 V.
Battery option: b01 = AGM/sealed b02 = gel b03 = flood/open.
Size / weight: 5.86 x 2.87 x 1.3 inches / 0.44 pounds x 2. All green colour tension x2.
Use of the 24V system

Note:
The light control function is powered by the solar panel
Rated current: dual USB output, 10A solar charge controller automatically detects 12V 24V battery; rated charging and discharge current 10A; USB output 5V/2A maximum, supports charging mobile phones.

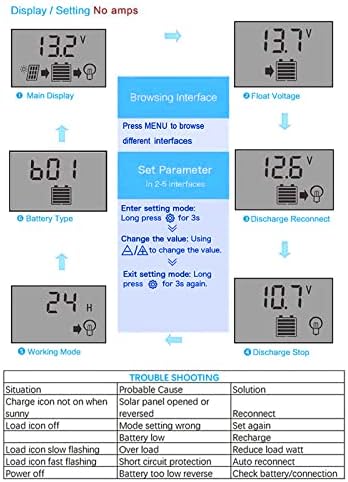

Adjustable parameters: 10A solar controller 12V 24V with multifunctional LCD display, dynamic display of operating parameters, convenient to read and adjust the parameters, convenient installation and debugging, backlit LCD display (note: the backlight turns on after approx. 5. automatically from seconds without operation)
Power off memory function: automatically saves different parameters set by the user and can save unexpected power off. Optional working mode, complete 3-stage PWM charging management.
Widely used: the load should be DC. To protect battery life, the solar controller automatically switches off when the battery voltage is below 8V. Suitable for lead acid batteries (OPEN, AGM, SGEL) with multiple charging timers.
