EPEVER 50A MPPT Solar Charge Controller 12V/24V/36V/48V Car Max.PV 200V Input Negative Ground Solar Panel Charge Controller with MT50 Remote Meter Temperature Sensor RTS & PC Communication Cable RS485

Price: €331.99
(as of Mar 15,2023 20:36:30 UTC – Details)

The Tracer AN series controllers are based on multi-phase synchronous rectification technology (MSRT) and an advanced MPPT control algorithm with dual-core processor architecture and a common negative design and are characterised by high response speed, high reliability and high industry standard.
With the adaptive three-stage charging mode, which is based on a digital control circuit, the Tracer AN series controllers can effectively extend the life of the battery and significantly improve system performance. The self-control relay for the load, utility company or generator make it easier to assemble a hybrid energy system.
The isolated RS485 interface with standard MODBUS communication protocol and 5V power supply makes it easy for customer to expand the application, it support up to 8 charging in parallel to expand system and meet with different monitoring requirements, so that can be widely used for various applications, e.g. solar RV, household system and field monitoring, etc.

CE certification (LVD EN/IEC62109, EMC EN61000-6-1/3).
ST and Infineon components of high quality and low failure rate to ensure product life
Battery type: lead-acid batteries and lithium-ion batteries.
Automatic control system to limit charging power and current when the nominal value is exceeded.
Hundred percent full load operation in working environment temperature range within charging & discharging

Battery temperature compensation function
Real-time energy recording and statistics function
Automatic power reduction function in case of overtemperature.
To monitor or set parameters via the phone apps or PC software

.
With the adaptive three-stage charging mode, based on a digital control circuit, the Tracer AN series controllers can effectively extend the life of the battery and significantly improve the performance of the system. The load, supply or generator relay for automatic control makes it easy to assemble the hybrid power supply system.
48V/36V/24V/12V Automatic detection of system voltage. Automatic control system to limit the charging power and current goes beyond the rated value. Wide range of maximum operating voltage, improved use of photovoltaic modules, double automatic limit function for rated charging power and charging current – supports four charging options: sealed, gel, flooded and users.
Standard Modbus communication protocol with an RS485 interface for monitoring or setting parameters with the phone apps, MT50 meter and PC software.

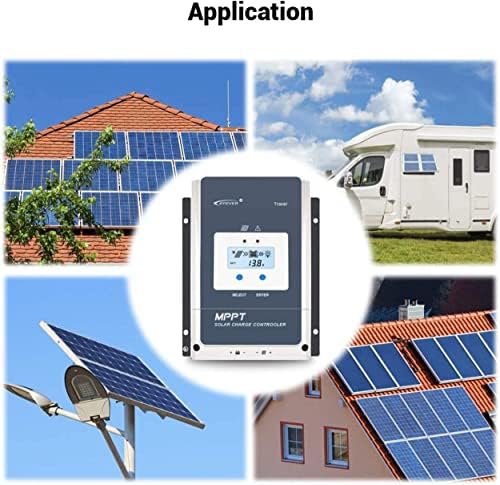

The dual RS485 connector (RJ45 connector) supports up to 8 parallel charging processes to extend the system and meet different monitoring requirements, so it can be used for various applications, such as solar caravan, household system and field monitoring etc.
