EPEVER® VS4524AU Solar Charge Controller 12 V/24 V Intelligent Solar Panel Battery Charge Controller with LCD Display and Double USB Port

Price: €62.98
(as of Mar 13,2023 20:54:26 UTC – Details)

★ Descriptions:
● Adopts the most advanced digital technology.
● LCD display and double USB.
● Supports 3 charging options: sealed, gel and flowed.
● 3-stage intelligent PWM charging: bulk, boost/equalize, float.
● Multiple load control modes: light on/off, test mode, manual mode, dual time mode.
● Energy statistics function.
● Battery temperature compensation function.
● Comprehensive electronic protection.

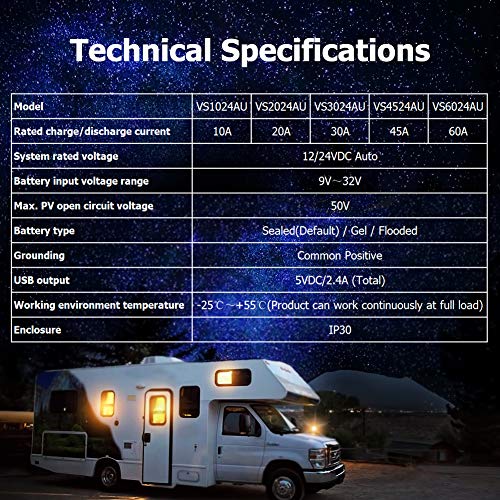

★ Specification:
Model: VS4524AU
Nominal system voltage: 12 V/24 VDC car.
Rated charging / discharge current: 45 A.
Max. PV Open circuit voltage: 50 V.
Battery input voltage range: 9V ~ 32V.
Battery Type: Sealed (Standard) / Gel / Flooded
USB output: 5 V DC/2.4 A (total).
LCD temperature range: -20°C ~ 70°C.
Working environment temperature:
-25°C ~ +55°C (product can work continuously at full load).
Temperature compensation coefficient: -3 mV / ℃ / 2 V (25 °C).

★ Package list:
1 x solar charge controller.
1 x user manual (English language not guaranteed).

★ Please note:
▲ The battery end must be installed insured. It is recommended that the installation distance does not exceed 150 mm.
▲ If an inverter is to be connected to the system, connect the inverter directly to the battery and not to the load side of the controller.

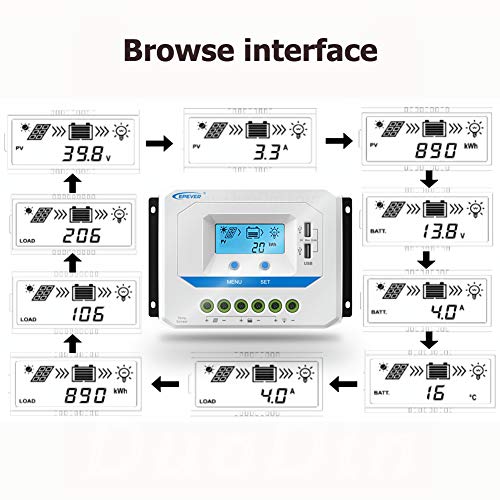

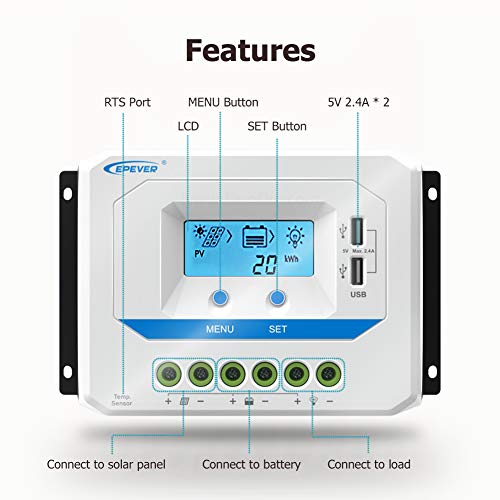

LCD display: design of the LCD display, which dynamically shows the operating data and the operating status of the device.

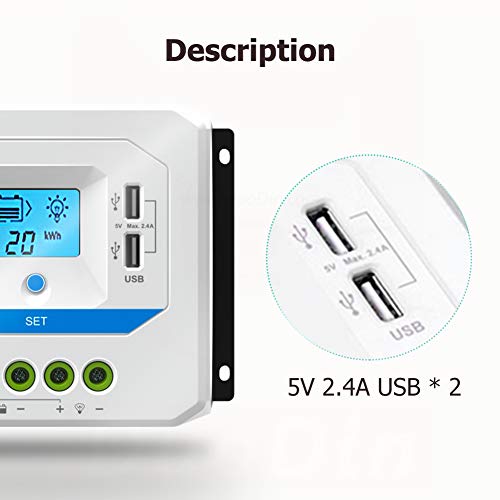

Double USB: USB output ports provide the power supply of 5 V DC / 2.4 A, can charge electronic devices and have short circuit protection.
【3】 3-stage intelligent PWM charging: bulk, boost, equalize, float and support 3 charging options: sealed, gel and flooded.
Multiple protection: reverse polarity of the PV, reverse polarity of the battery, overvoltage of the battery, overdischarge of the battery, overheating of the battery, short circuit of the load, overload of the load etc.
