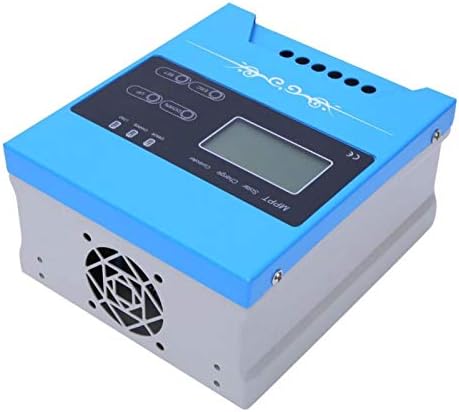

GAESHOW MPPT Solar Charge Controller 12V/24V/48V/96V Battery Charge Controller MPPT Regulator (1)

Price: €83.29
(as of Mar 16,2023 21:53:45 UTC – Details)

Specification: Model (optional) MPPT-MINI-10AMPPT-MINI-20AMPPT-MINI-30AIdentified system
Voltage range 12V systemDC9V-DC16V24V SystemDC18V-DC32V48V SystemDC42V-DC60V96V SystemIndepedent SystemPhotovoltaic Panel Open.
Circuit input voltage range 20V ~ 100V (12V system) 40V ~ 150V (24V system) 80V ~ 150V (48V system) Maximum charging current 10A20A30APV Maximum input power (12V) 150W250W400WPV Maximum input power (2440WPV V) 300W500W800WPV Maximum input power (48V) 600W1000W1600WP power supply (96V) —— Maximum output current 10A15A15AMPPT efficiency >99.5% 121VStandard 13.1V balance charging time 1/2/3 hoursBoost charging time 1A Double A Hours device address 1 ~ 99light control opening voltage 5 ~ 11 V light control closing voltage 5 ~ 11 V light control delay 10 ~ 4 over temperature protection reduce the current at 70 °C, turn on the charge and DC load at 90 °C operating temperature -20 °C ~ 50 °C storage temperature. 40 °C. ~ 80°C Humidity 10% ~ 90% Weight approx. 1.5 kg. Product size approx. 201.5 x 145 x 81mm/7.93 x 5.71 x 3 19 inches.

Package contents: 1 x solar charge controller, 2 x mounting plate, 1 x screw package, 1 x German manual.

Note: Please note that the new and old type of this product will be sent at random. Make sure that this is not a problem for you before ordering.

Advanced MPPT technology (Maximum Power Point Tracking) Tracking efficiency is at least 99.5%. The efficiency is improved by 15 to 20% compared to the normal PWM algorithm.
Use high-quality electronic components, an advanced power supply conversion circuit, a maximum conversion efficiency of up to 98% and a full load efficiency of up to 97%.
Aluminium metal structure available for various hard conditions.
Support data storage, storage time up to 10 years.
