Solar Charge Controller 100A/80A/60A MPPT/PWM Solar Charge Controller 12V/24V/36V/48V Car Controller Tools Solar PV Battery Charger with LCD and Dual USB Intelligent Controller (Size: 100A, Colour: 12V 24V 36 V, 48

Price: €110.00
(as of Mar 09,2023 22:29:42 UTC – Details)

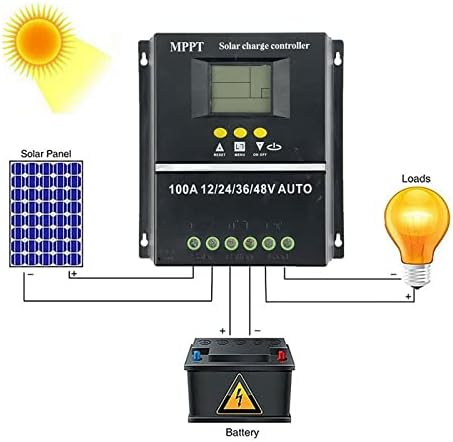

For 12 V batteries, use approx. 18 V photovoltaic modules, for 24 V batteries approx. 30-37 V photovoltaic modules and for 48 V batteries 60 V. For photovoltaic modules by -72 V, the controller wiring is connected to the battery first and then to the photovoltaic panel. Disconnect the cable on the contrary, otherwise the control can be easily damaged. !
Description charging protection:
1. When using a 12V battery, the boost charging voltage of the battery is higher than 14.8V and is converted to a floating charging voltage of 13.8V.
2. When using a 24V battery, the battery boost charging voltage is higher than 29.6V and changes to a trickle charging voltage of 27.6V.
3. When using a 36V battery, the battery boost charging voltage is higher than 44.4V and changes to a floating charging voltage of 41.4V.
4. When using a 48V battery, the battery boost charging voltage is higher than 59.2V and changes to a floating charging voltage of 55.2V.
How to set the watch:
When the battery is connected, press “” ” to set the clock table, short press “” to save.
Instructions for adjusting the charging voltage:
After connecting the battery, after setting the clock and saving, press “” for 3-5 seconds, the screen shows L**V as a floating charging voltage, which can be adjusted by pressing “”; press short again “H**V increases the charging voltage, which can be adjusted by pressing “”; press “”.F**V is the low voltage shut-off voltage of the DC-L. that branch by pressing. by “”, after setting long press “” for 3-5 seconds for saving and ending.
Note:
1. Please connect the battery to the controller first and then the photovoltaic module to make sure
2. Innovative MPPT technology, high tracking efficiency, can increase the energy generated.
3. High-speed and high-performance design, ideal for solar charging purposes.
4. Aluminum alloy housing and portable size, durable.
5. Excellent heat dissipation, advanced fan temperature control technology to quickly control heat dissipation.
